5 Wall-Mounted ADA Railing Examples

Creating an accessible and safe environment isn’t just a matter of compliance; it’s an essential part of welcoming every customer and employee.

For many businesses, wall-mounted ADA railings play a crucial role in meeting accessibility standards while also enhancing safety and usability throughout their spaces.

From providing support in restrooms and hallways to ensuring stability along ramps and entryways, these railings serve a variety of functions depending on the setting.

Understanding the different needs and applications of wall-mounted ADA railings can help business owners choose the right solutions that balance safety, functionality, and design.

Wall-Mounted ADA Ramp Railing

First, we have a wall-mounted railing for an enclosed ramp.

Having an enclosed ramp like the one above helps the business save money because a full free-standing railing system isn’t required. Instead, the wall itself provides one side of support, and the wall-mounted ADA railing fulfills the accessibility requirements without the added cost of extra posts and fittings. This makes it a smart, budget-friendly solution for businesses that need to stay compliant while also keeping project expenses under control.

Beyond cost savings, a wall-mounted ADA railing provides a clean and streamlined look. Because it attaches directly to the wall, it takes up less space and allows for a wider walkway, which is especially important in high-traffic areas. It also minimizes obstacles along the ramp or staircase, which improves safety for everyone, particularly for those using mobility devices.

For this installation, the business used our pipe and fittings to stretch the railing across the entire length of the ramp. To handle tight turns, they incorporated our variable-angle fitting, which allowed the railing to wrap seamlessly around corners without breaking the flow. The result is a continuous, sturdy handhold that guides users from start to finish.

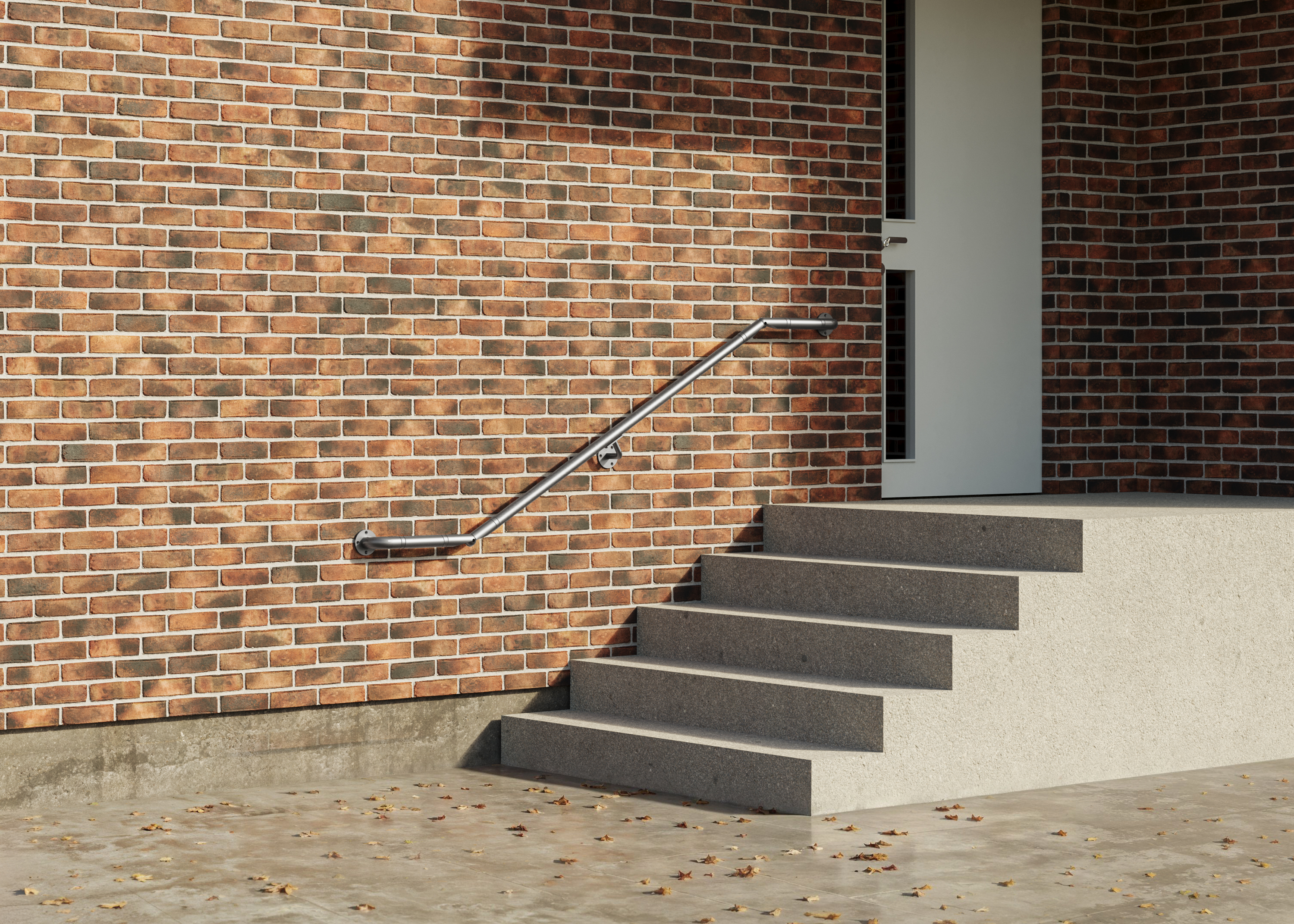

Wall-Mounted ADA Stair Railing

This wall-mounted ADA stair railingdemonstrates how our modular pipe and fittings can be used to run up staircases and level out flat at both the top and bottom of the staircase.

By mounting directly to the wall, the railing saves space on the staircase while still providing the stability required for ADA compliance. The modular design makes it easy to adapt to landings, tight turns, and varying elevations, ensuring a safe, uninterrupted handhold from start to finish.

Built from durable galvanized steel, these railings are designed to withstand daily use, resist rust, and perform reliably both indoors and outdoors.

Installation is simple and requires no welding or specialized labor, making it a cost-effective way for businesses to upgrade existing staircases quickly while meeting accessibility standards and providing a safer environment for everyone.

Retrofitted Wall-Mounted ADA Railing

Here we have a retrofitted ADA-ramp railing with a D-return. This installation is a great example of how our modular pipe and fittings system can be used to upgrade an existing railing to meet ADA standards while making the space safer and more user-friendly.

One of the biggest advantages of a modular railing system is flexibility. Instead of tearing out and replacing an entire railing, businesses can retrofit what’s already in place by adding or modifying sections with our fittings.

The D-return is a key ADA requirement because it prevents clothing or bags from getting caught on the end of the railing, while also giving users a smooth, continuous handhold for better stability.

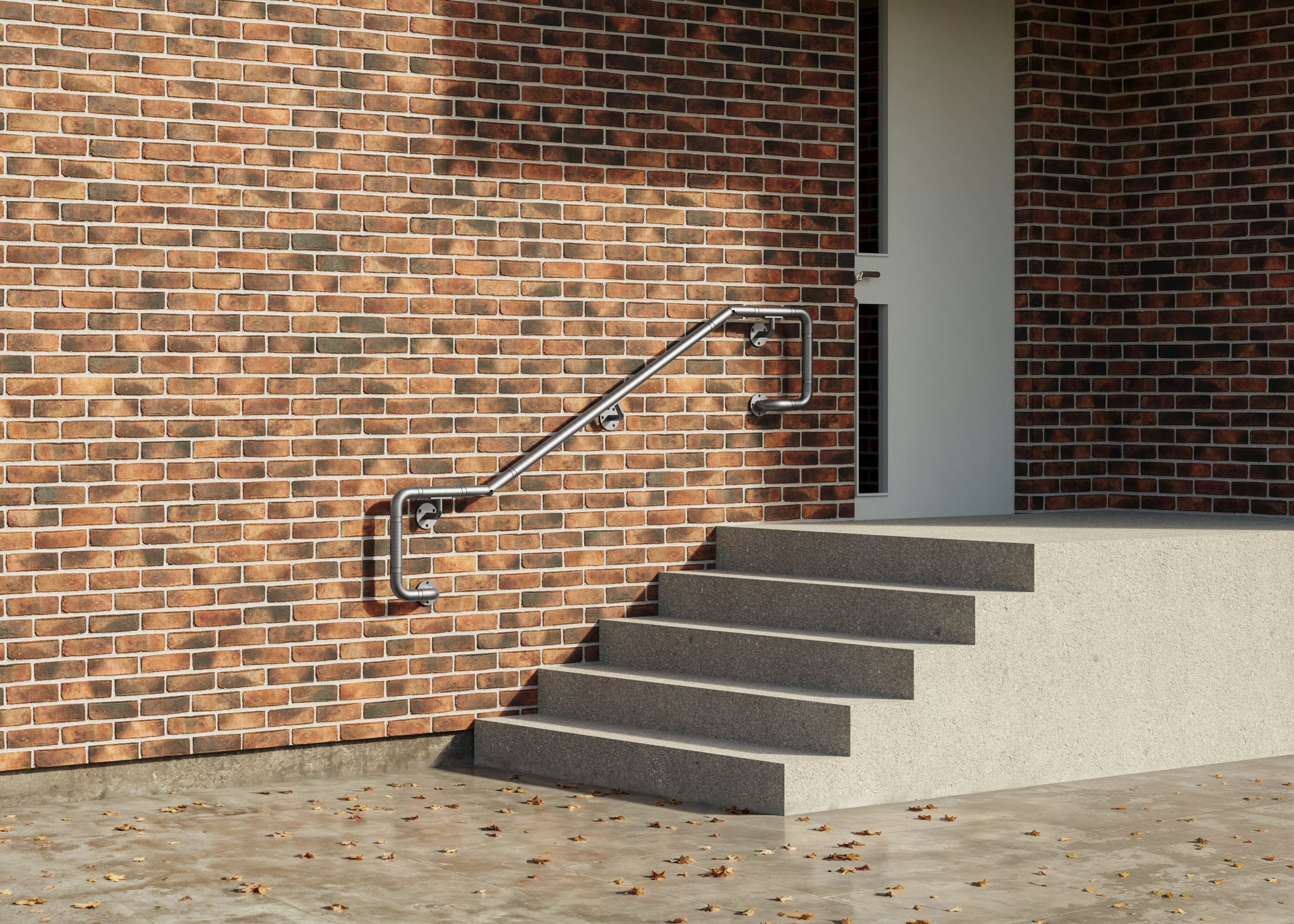

Wall-Mounted ADA Railing with D-Return

This wall-mounted handrail features what is known as a “D-return” at both the top and bottom of the railing. A “D-return” is a design detail where the handrail curves back toward the wall, creating a rounded return rather than ending abruptly.

This simple adjustment plays a critical role in safety and usability by eliminating sharp or exposed ends that could snag clothing, bags, or mobility aids. It also provides a smooth transition that helps guide users naturally onto and off the railing.

For staircases, a D-return ensures that the railing extends far enough to give users support before stepping onto the stairs and after exiting them, reducing the risk of slips or falls.

On wheelchair ramps, the continuous curve of the D-return offers a stable grip along the entire length of the ramp, giving individuals using mobility devices greater confidence and control.

Wall-Mounted Stair and Ramp ADA Railing

Here we have a little bit of everything, from wall-mounted ramp railings to retrofitted railings on wooden stairs. They are all designed to make these spaces ADA-compliant. The goal is always the same: to provide a smooth, continuous, and “grabbable” handhold that allows people to safely navigate stairs and ramps.

The real advantage of using a modular pipe and fittings system is its versatility. Unlike welded or prefabricated railings that only fit specific layouts, this system can be adapted to almost any environment.

Whether it’s a new installation on a concrete ramp, a retrofit on an older wooden staircase, or a railing that needs to bend around tight corners, the modular components can be configured to fit the exact space.

This makes it possible to upgrade existing infrastructure quickly, without major renovations, while still ensuring accessibility and safety. For businesses, it’s a practical solution that balances compliance, customization, and ease of installation.

Start Building Your ADA Railing Today

Choosing the right ADA railing solution is about more than just meeting standards; it’s about creating a safer, more welcoming space for everyone who walks through your doors.

If you’re ready to start building today, check out our full selection of ADA railing kits to find the right fit for your project.

Need expert guidance? Our project specialists are here to help you design a solution that’s both compliant and customized to your space.
